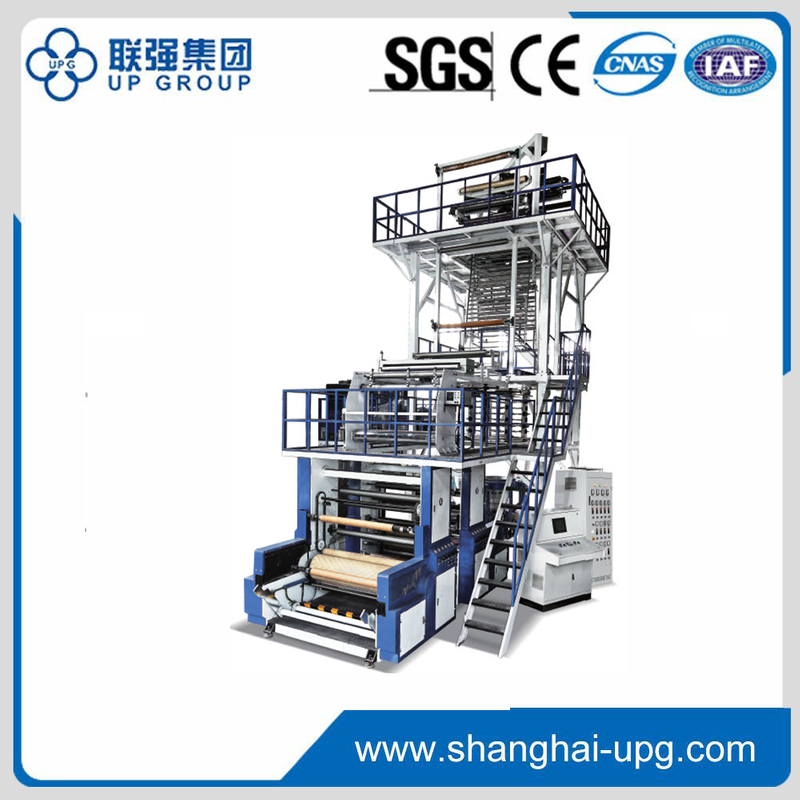

LQ-3L1000/1200/1500/2000
UPG & LQ
SG-3L1000 SG-3L1200 SG-3L1500 SG-3L2000
EXTRUDER 挤出机 | Screw Diameter
L/D Screw Material Cylinder Material Cylinder Cooling Main Motor Temperature Control Average Power-consum. | 螺杆直径
螺杆长径比螺 杆 材 料 料 筒 材 料 料 筒 冷 却 主机功率 料筒温度控制平均耗电量 | AФ50mm BФ60mm CФ50mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A18.5+B30+C18.5kw 3 X 3 60kw | AФ55mm BФ60mm CФ55mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A22+B37+C22kw 3 X 3 80kw | AФ60mm BФ65mm CФ60mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A30+B45+C30kw 4 X 3 100kw | AФ65mm BФ75mm CФ65mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A37+B55+C37kw 4 X 3 120kw |
DIE HEAD 模头 | Die size Air ring Air blower | 模头直径风环 风机 | Ф250mm 800mm 7.5kw | Ф300mm 1000mm 11kw | Ф400mm 1200mm 11kw | Ф500mm 1600mm 18.5kw |
TAKE UP UNIT 牵引装置 | Roller width Take-up speed Take-up motor |
牵引辊宽牵引速度 牵引电机功率 | Ф165 X 1200mm 5-70m/min 1.5kw | Ф180 X 1400mm 5-60m/min 2.2kw | Ф200 X 1700mm 5-50m/min 2.2kw | Ф220 X 2200mm 5-40m/min 3kw |
WINDING UNIT 收卷装置 | Type Winding motor Winding speed Dimension(LxWxH) | 收卷方式 收卷电机功率收卷速度 外形尺寸(长x宽x高) | Surface friction type 1.5kw 5-70m/min 7.0 X 4.5 X 7.5m | Surface friction type 2.2kw 5-60m/min 8.5 X 5.5 X 8.5m | Surface friction type 2.2kw 5-50m/min 9.0 X 6.0 X 10.5m | Surface friction type 3kw 5-45m/min 10.0 X 6.5 X 12m |
SG-3L1000 SG-3L1200 SG-3L1500 SG-3L2000
EXTRUDER 挤出机 | Screw Diameter
L/D Screw Material Cylinder Material Cylinder Cooling Main Motor Temperature Control Average Power-consum. | 螺杆直径
螺杆长径比螺 杆 材 料 料 筒 材 料 料 筒 冷 却 主机功率 料筒温度控制平均耗电量 | AФ50mm BФ60mm CФ50mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A18.5+B30+C18.5kw 3 X 3 60kw | AФ55mm BФ60mm CФ55mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A22+B37+C22kw 3 X 3 80kw | AФ60mm BФ65mm CФ60mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A30+B45+C30kw 4 X 3 100kw | AФ65mm BФ75mm CФ65mm 30:1 SACM-645/38 CRMOALA SACM-645/38 CRMOALA 370w X 2/3 A37+B55+C37kw 4 X 3 120kw |
DIE HEAD 模头 | Die size Air ring Air blower | 模头直径风环 风机 | Ф250mm 800mm 7.5kw | Ф300mm 1000mm 11kw | Ф400mm 1200mm 11kw | Ф500mm 1600mm 18.5kw |
TAKE UP UNIT 牵引装置 | Roller width Take-up speed Take-up motor |
牵引辊宽牵引速度 牵引电机功率 | Ф165 X 1200mm 5-70m/min 1.5kw | Ф180 X 1400mm 5-60m/min 2.2kw | Ф200 X 1700mm 5-50m/min 2.2kw | Ф220 X 2200mm 5-40m/min 3kw |
WINDING UNIT 收卷装置 | Type Winding motor Winding speed Dimension(LxWxH) | 收卷方式 收卷电机功率收卷速度 外形尺寸(长x宽x高) | Surface friction type 1.5kw 5-70m/min 7.0 X 4.5 X 7.5m | Surface friction type 2.2kw 5-60m/min 8.5 X 5.5 X 8.5m | Surface friction type 2.2kw 5-50m/min 9.0 X 6.0 X 10.5m | Surface friction type 3kw 5-45m/min 10.0 X 6.5 X 12m |
